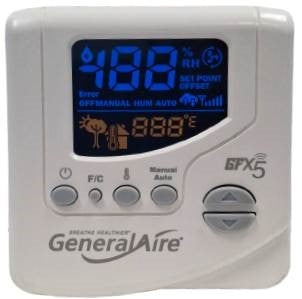

GeneralAire GFX5 - Wi-Fi Capable, Universal, Automatic Humidistat with Manual Mode, GFI# 7172
GeneralAire GFX5 - Wi-Fi Capable, Universal, Automatic Humidistat with Manual Mode, GFI# 7172
SKU:GENERALAIREGFX5
In Stock
Alert me if this item is restocked.
We often restock popular items or they may be returned by the other customers. If you would like to be notified when this happens just enter your details below.
GeneralAire GFX5 - Wi-Fi Capable, Universal, Automatic Humidistat with Manual Mode, GFI# 7172
We respect your privacy and don't share your email with anybody.
Alert me if this item is restocked
We have cancelled your request.
Couldn't load pickup availability
- Description
GeneralAire’s new Wi-Fi capable humidistat features all the benefits of the GFX4, with an upgraded software and connectivity to our brand new GeneralAire app.
Note: This GFX5 will be replacing the GFX4, which will be discontinued moving forward
Features:
• Wi-Fi enabled through the GeneralAire app
• Universal Wi-Fi technology, the GFX5 can be used with any brand/model humidifier
• Automatic (sensor) or Manual control
• Can activate the furnace blower motor
Specs:
• Model # GFXS
• GFI # 7172
• Voltage: 20-30 VAC, 60HZ
• Switching Load: 1 amp max. 30 vollt
• Outdoor Sensor: max. 200ft (61 m.)
• RH Accuracy: @77F (25C) 20% - 80% +/-4% RH
• Annual Drift: +/-0.5% RH
• Indoor Temp: +/-2F (1C)
• Outdoor Temp: +/-2F (1C)
• Resolution Temp: 1 deg / 1%
• Relay Close: Setting -1% RH
• Relay Open: Setting +1% RH
• Control Mode: Auto: 10%-60% RH control rand/ outdoor temp -10F (-23C) min. Manual: 10% - 75% RH
Click Here for GFX5 Spec Sheet
Click Here for Humidistat Installation and Operating Instructions
